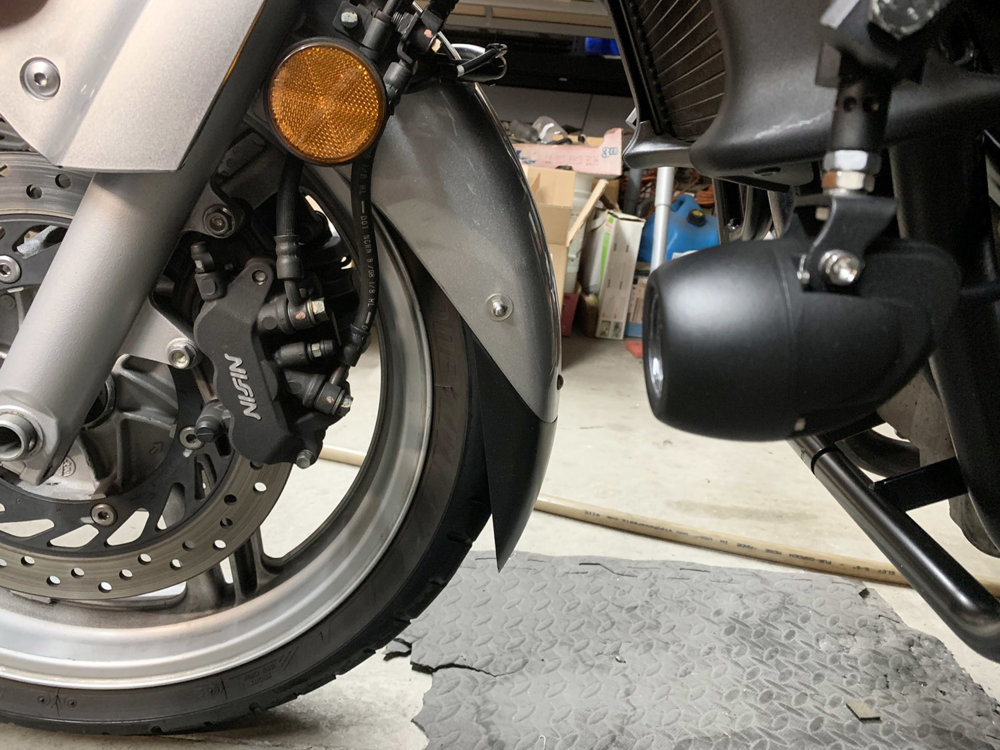

Both the LED Driving Lights and the tubing mounting brackets came in the last couple of days.

At first, I was not too impressed with the tubing mounting kit that I selected as it did not give me a straightforward solution. The mounting kit came with two different mount piece sizes for a wide range of options. Unfortunately, nothing of them would work very easily with the light configuration that I choose.

After spending some time staring at everything for a while. Here's my solution to my dilemma.

1. Drill and tap of the shorter mount pieces to convert it into a mounting interface.



2. Then screw in the mounting bolt from the light assembly mount bracket and then bolt the piece to the installed mounting clamp.



3. The interfacing piece not gets me pivot point to aid with aiming the light.



4. With very thing assembled loosely, looks like that this concept will be a solid solution to the dilemma.



I trip to the hardware store tomorrow will take care of the fine details and will help to solidify this solution into something more permanent. Then I can move on to wiring them up.
